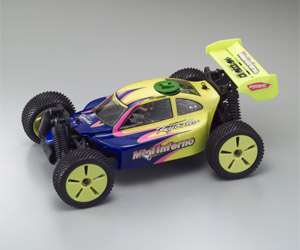

Half Eight Mini Inferno T1 30121T2-B
The latest evolution of the 6 time consecutive 1/8 Buggy World
Championship winning Inferno, is now making tracks with a 1/16 size electric
buggy. Many of the parts and structures are simply scaled down so the geometry
and setting points that make the Inferno so dominant are shared. It even
features a dummy engine head and exhaust stinger. Showing the quality and
performance of the proud Inferno name gives a level of satisfaction seemingly
far greater than its size. Full of world championship winning race technology,
this is the best high-performance start of a new category. And, it's completely
factory-assembled! Even the body is painted so simply load the batteries and go.
Continual development of optional upgrades will keep you challenging yourself to
that next level. Make no mistake. You will be addicted to high-speed rough-road
racing before you even know it
|
|
|
|
|
Q: |
What are the specifications
of the Mini-Inferno?
(As seen on the Kyosho Web Site and the video shown in Hobby
Shops) |
A: |
Battery / No. 71951 Half-Eight
SP Battery Set
Motor / No. IHW13 X-SPEED Mini-Inferno SP Motor
Shocks / IHW14 Mini-Inferno Oil Shock Set (Front), IHW15
Mini-Inferno Oil Shock Set (Rear) |
Q: |
What its maximum speed? |
A: |
6-Cell Battery + Normal Motor
- Maximum speed of 21 km/h
6-Cell battery + Optional Motor - Maximum Speed of 23 km/h (not
recommended due to increased power consumption)
Half-Eight SP Battery (8-Cell) + Normal Motor - Maximum speed of
28km/h
Half-Eight SP Battery (8-Cell) + Optional Motor - Maximum speed
of 34km/h |
Q: |
It doesn?ft seem to have
enough acceleration (not transferring the drive power). Why? |
A: |
The factory setting of the
Mini-Inferno is for off-road use so the slipper gear is set a
little loose (for 6-Cell Battery) to allow the car to accelerate
smoothly at the start with a small degree of slip (refer page 23
of instruction manual). This setting delivers better off-road
acceleration and prevents damage to the gears. If you still feel
there is not enough acceleration, refer to the instruction
manual and adjust up to 4mm-5mm to suit. (Note the following
caution)
CAUTION: In order to prevent damage to the
gears, the car will still slip during acceleration even when
adjusted to 4mm. Adjusting further will allow the car to
accelerate without any slipping, however, the increased load on
the gears can cause damage. For on-road use or on high-grip
surfaces, adjusting to 3.6mm~4mm is recommended. |
Q: |
When will the 8-Cell Nickel
Metal-Hydride battery be available? |
A: |
It's available in June, 2005.
No. 71951 Half-Eight SP Battery Set
No. 71952 Half-Eight SP Battery |
|
The battery protection
function included in the Battery Set keeps the battery voltage
at about 7.0V. This prevents the damage to the battery from
discharging too much and safely maintains the battery's original
performance for longer. |
|
Imagine the sophisticated design technology of the 6-time consecutive World
Championship winning Inferno's latest MP777 model condensed into a
high-performance electric racing buggy.
Roughly half the size of the 1/8 Inferno, this half-eight (1/16) sized off-road
machine just powers over the ruts just like its big brother with its similar
designed suspension unit, bulkhead, knuckles, radio plate, shock stays and even
a similar number of bolts.
It even features a dummy engine head and muffler cutter, and the logo etched on
to the front diff case completes the authentic Inferno look. But the excellent
workmanship is also backed up with top-level off-road racing performance from
the fulltime 4WD system and race-bred components so the Mini Inferno is right at
home in the mud or powering through jumps. Plus it even comes as a fully factory
assembled ReadySet with radio system included.
Now you can experience the excitement of high performance off-road racing
straight out of the box!
[1] |
Dummy engine head and
muffler cutter complete that unmistakable Inferno style. |
[2] |
Equipped with
built-in speed control amp with brake and reverse. |
[3] |
Large rear wing
generates powerful down-force. |
[4] |
Equipped with total
of 12 precision ball bearings. |
[5] |
Special pin-spike
tires give you the confidence to take on any surface. |
[6] |
Boasts deep stroke
4-wheel independent double-wishbone suspension. |
[7] |
Features slipper gear
to protect drive system from external shocks. |
The intimidating form of the 1/8 Inferno MP777 is condensed into a 1/16 sized
off-road missile loaded with advanced racing components. Compact in size, it has
a length of 270mm.
Comes as a ReadySet so just set the batteries and hit the dirt.
Six AA-sized alkaline batteries provide long run times of up 35 minutes.
Multi-point setting options and parts make this a proud member of the Inferno
family. <Parts included in kit allow adjustment of: springs; chassis height;
front caster; rear toe-in and wing angle.>
Race up to 12 cars together! Buggy power can make any open space a racetrack.
Maximum speeds of about 21km/h.
Wide range of optional upgrade parts for even higher performance.
* Caution : Do not operate in areas prohibited to R/C cars or in dangerous
locations.
Spec Comparison |
|
Mini Inferno ST |
Mini Inferno |
Length: |
270mm |
260mm |
Width: |
215mm |
173mm |
Gear ratio: |
12.6:1 |
10.8:1 |
Tire size: |
74mmX36mm |
64mmX25mm |
ReadySet Contents |
|
|
Factory-assembled
chassis with installed R/C Unit |
|
Painted body
complete with markings. |
|
KT-3 wheel-type
transmitter |
|
Two different
front hubs for choice of settings. |
|
Three varieties
of rear lower suspension holders for different toe-angle
settings. |
* |
AA-size X 8
alkaline batteries for transmitter, AAA-size Ni-MH batteries are
sold separately (not included) |
|
Chassis Technical Data |
Length |
270mm |
Width |
173mm |
Height |
100mm |
Weight |
800g (approx.) |
Wheelbase |
176mm |
Ground
Clearance |
15-25mm |
Tread
(F/R) |
148mm |
Tire
(F/R) |
φ64 x 25mm |
Gear
Ratio |
10.8:1 |
Motor |
380-Class |
See the PLAY Guide with tips how to play with these Mini Inferno
Cars click HERE
To order
Kyosho 30121T1B click HERE
To order
Kyosho 30121T2B click HERE
To order
Kyosho 30121T3B click HERE
To order
Kyosho 30121T4B click HERE |
Set
Contents
- Fully Assembled Chassis
- Pre-Painted Body
- KT-3 Wheel-Type Transmitter
- Front Hub (2 types) for different settings
- Rear Lower Sus. Holder (3 types) for different settings
- 6 x AA-sized batteries for chassis and 8 x AA-sized
batteries for transmitter are sold separately.
|
|
