100% pure fun!
Nothing quite compares to the feeling of squeezing the trigger, seeing the chassis drop back onto its rear tires at impact of acceleration, and seeing the entire TNX propel forward with that resonating high-tone engine buzz as she works her way up to her top speed of 60km/h. Having complete control of this baby as she rockets around a circuit or your neighborhood is the ultimate in R/C thrills.

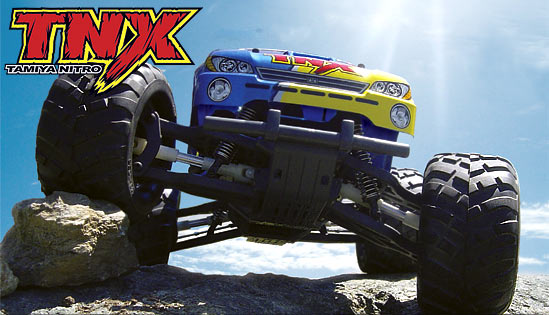

Explosive acceleration, extreme top-speeds and unbeatable running performance all packed into a fully assembled glow engine chassis! The TNX is Tamiya's new and ultimate ready-to-run nitro monster truck. Featuring an awesome power-to-weight ratio the TNX is powered by a high-performance 3.0cc FS-18SR engine developed with the collaboration of O.S. engines. The TGM-03 chassis features a new compact 2-speed transmission designed to ensure consistent shifting and a lightweight double wishbone suspension employing a total of 8 oil dampers for sharp handling and excellent stability.
The TNX will out accelerate, out corner and out run just about any truck in its class.
Ultra tough chassis
The TNX features an ultra tough chassis featuring a duraluminum power train deck, a reinforced resin frame, shaft driven 4WD drive train and heavy-duty double wishbone suspension, all the elements necessary for a long lasting durable chassis ready to take-on all types of terrain.
High-powered FS-18SR Engine
Developed in collaboration with O.S. Engines, the R/C engine specialists, the TNX is fitted with a finely tuned high-performance FS-18SR engine loaded with the highest quality glow-engine parts, guaranteeing consistent performance at the highest level. The highly efficient TGM-03 chassis 2-speed transmission ensures all that power is efficiently transferred to speed and running performance.
The total weight is dramatically reduced to put the TNX in the same weight category as most 1/10 monster trucks without sacrificing durability. Lightweight suspension components reduce unsprung weight for sharp handling and stability.
The TNX features a new forward only transmission with a pin-type 2-speed for solid and consistent shifting. Ultra strong hardened steel drive shafts and joint cups deliver power to the differentials.
Videos
(Videos Require
Windows Media Player Version 9)
Videos
are slow to download. They are hosted by
Tamiya, not by us so do not blame us for
the speed.
 Download Video 1
Download Video 2
Download Video 3
Download Video 4
PDF Exploded Views
(Requires
Adobe Acrobat Reader)
Parts List
Chassis View
Rear View
Front View
Tranny and Engine View
Engine View
Specifications
- Overall length: 560mm, Overall width: 408mm, Overall height: 260mm.
- Lightweight aluminum flywheel enables quick engine response.
- Main clutch has been lightened to engage at higher revolution.
- Full ball bearings.
- Comes with electric starter unit and glow plug heater.
- Newly designed clutch built to take the rigors of racing.
- New pin-type 2-speed
- Machined steel differential gears.
- Aluminum wheel hubs
- Speed is in excess of 40mph on radar.
*Specifications subject to change.
