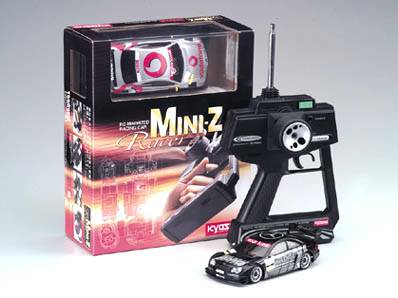

The "MINIZ Racer" is not only small and does not only give you a large-scale
feeling, but it is also an unprecedented new generation palm-sized racer. It
comes with a newly developed receiver with built-in amplifier plus a micro
servo, all installed in a 90mm-wheel base chassis. In addition to this, the
amplifier is a FET high frequency type that provides high power. Also, the
receiver is 27MHz-narrow band-ready and allows for up to 12 cars to run
simultaneously. A long running time of about one hour is also possible with only
four AAA alkali batteries. Sleek racing with a 3P suspension 130-class high
power motor and differential gears makes it possible to enjoy "Racing
Everywhere". In addition to the authentic chassis performance that only KYOSHO
can produce, various optional parts allow for further racing improvements. The
portability and authenticity of the "MINIZ Racer" will raise the standard of R/C
racing to unprecedented levels.
The newly modified MR-01F chassis is...

The race-proven MR-01 chassis combined with a newly designed motor case
(MR-01F).
Compared to the MR-01, the motor position is now lower, allowing body styles
with lower forms to be fitted.
Also, a lower center of gravity delivers improved road performance.
The choice of 3 variable wheelbase settings (S, M, L) is the same
|
Technical Data |
| Chassis Length |
130mm |
| Width |
65mm |
| Track(F/R) |
56.5mm |
| Tyre Size |
φ 25 x 8.5mm |
| Weelbase |
90mm |
| Gear taito |
7
: 1 |
| Battery(notincl.) |
AAA-Size x 4 |
| Motor(incl.) |
130 Type |
| Controller(incl.) |
FET HF Type |
|
