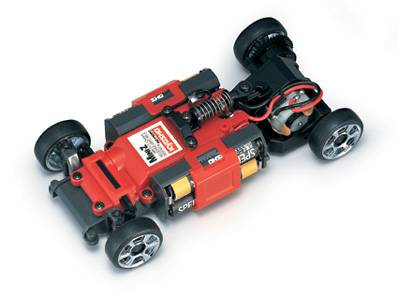

The RM-type of the new MR-015 chassis bring forth the next generation of the
Mini-Z!

One of the funkiest mini vans on the street is pulling up as a Mini-Z Racer! The
long wheelbase body looks totally real on the MM-type of the newly developed
MR-015 chassis. As the new generation chassis, the MR-015 shares the digital
servo, high frequency amp and some parts with the MR-02 chassis. Simultaneously
achieving high levels of performance and scale form, you can even customize your
van with the many optional parts that will be continuously released. But there’s
more fun to this machine that racing as you make your style statement with the
neon pipes. The Mini-Z will continue to amaze and captivate your imagination,
beyond you wildest dreams!
Toyota Estima and Honda Odyssey make a lifelike reappearance.
 Suited to long wheelbase
and narrow body styles. There will be more mini vans cruising around soon.
Shares not just some parts
with the MR-02 chassis, but its high performance and user-friendly maintenance
and setting capabilities.
Exquisite detail brings
diecast quality finish to a high performance mini van that fits on the palm of
your hand.
Includes pre-painted body
with detailed graphics. Also fitted with door mirrors and wipers.
Newly designed door mirrors
made from flexible material to limit damage from unexpected hits.
Features high frequency FET
speed control amp with reverse.
Equipped with high
definition digital steering servo.
Authentic suspension system
and high power drive train delivers much higher speed and performance than its
size indicates.
Tie-rods with top bridges
make maintenance and setting easy.
Up to 12 cars can be run at
the same time with normal specifications.
Four AAA-sized alkaline
batteries deliver an extended run time of about 1 hour.
An abundance of optional
parts is available so you can upgrade performance as you like.
ReadySet includes
everything you need, except batteries. All R/C system components are installed
on the fully assembled chassis
Table of wheelbases and matching body types
for the Mini-Z Racer 015 Chassis
|
Chassis Type |
Wheelbases |
Bodys Type |
|
S |
M |
L |
LL |
3L |
4L |
Narrow |
MR01
Wide |
MR02 |
Conpact |
|
MR-01 |
O |
O |
O |
X |
X |
X |
O |
O |
X |
X |
|
MR-01 HIGH MOUNT |
O |
O |
O |
X |
X |
X |
X |
X |
X |
O |
|
MR-01F |
O |
O |
O |
X |
X |
X |
O |
O |
X |
X |
|
MR-02MM |
X |
X |
X |
O |
O |
O |
X |
X |
O |
X |
|
MR02RM |
O |
O |
O |
X |
X |
X |
X |
X |
O |
X |
|
MR-02RML |
O |
O |
O |
X |
X |
X |
X |
X |
O |
X |
|
MT-015MM |
X |
X |
X |
O |
O |
O |
O |
O |
X |
X |
|
MR-015RM |
O |
O |
O |
X |
X |
X |
O |
O |
X |
X |
O Match, X Doesn’t Match
Technical Data
Length 124.5, 128.5, 132.5mm
Width 65 ~ 74mm
Total Weight approx. 130g
Wheelbase 86, 90, 94mm
Tread (F) 56.5 ~ 64mm
Tread (R) 56.5 ~ 62.5mm
Ground Clearance 4mm
Tire (F) φ25 x 8.5mm
Tire (R) φ25 x 8.5 ~ 11mm
Gear Ratio 7.3, 6.3, 5.5, 4.9 : 1
Motor 130-Class
|
