The RM-type of the new MR-015 chassis bring forth the next generation of the
Mini-Z!

The RM-type of the newly developed MR-015 chassis gives full expression to the
real form of fine motor vehicles by allowing a variety of wheelbase and tread
combinations, large or small overhangs, and high or low chassis height settings.
And it shares some parts with the MR-02 including the digital servo and high
frequency amp. High performance and stunning scale form are achieved
simultaneously. The flexibility of the MR-015 allows a huge variety of body
variations and driving styles, from street machines to racing cars. The R32GTR
that dominated the Gr.A from 1990 ~ 1993 is known in its current day Alpha 156
GTA form, and the face of American motoring, the Chevrolet Capris, are both here
to start a new motoring story with the Mini-Z.

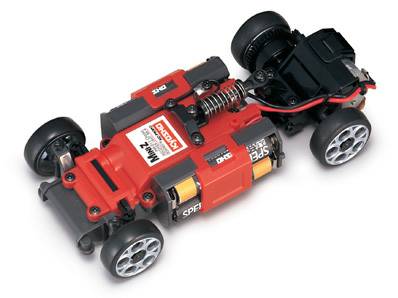

The MR-015 RM type simultaneously delivers incredible scale detail and high
performance.
 Shares not just parts with
the MR-02, but also its high performance, user-friendly maintenance and setting
capability.
Includes pre-painted body
with detailed graphics. Also fitted with door mirrors and wipers.
Newly designed door mirrors
made from flexible material to limit damage from unexpected hits.
高Features high frequency
FET speed control amp with reverse.
Equipped with high
definition digital steering servo.
Authentic suspension system
and high power drive train delivers much higher speed and performance than its
size indicates.
Tie-rods with top bridges
make maintenance and setting easy.
Up to 12 cars can be run at
the same time with normal specifications.
Four AAA-sized alkaline
batteries deliver an extended run time of about 1 hour.
An abundance of optional
parts is available so you can upgrade performance as you like.
ReadySet includes
everything you need, except batteries. All R/C system components are installed
on the fully assembled chassis
Table of wheelbases and matching body types
for the Mini-Z Racer 015 Chassis
|
Chassis Type |
Wheelbases |
Bodys Type |
|
S |
M |
L |
LL |
3L |
4L |
Narrow |
MR01
Wide |
MR02 |
Conpact |
|
MR-01 |
O |
O |
O |
X |
X |
X |
O |
O |
X |
X |
|
MR-01 HIGH MOUNT |
O |
O |
O |
X |
X |
X |
X |
X |
X |
O |
|
MR-01F |
O |
O |
O |
X |
X |
X |
O |
O |
X |
X |
|
MR-02MM |
X |
X |
X |
O |
O |
O |
X |
X |
O |
X |
|
MR02RM |
O |
O |
O |
X |
X |
X |
X |
X |
O |
X |
|
MR-02RML |
O |
O |
O |
X |
X |
X |
X |
X |
O |
X |
|
MT-015MM |
X |
X |
X |
O |
O |
O |
O |
O |
X |
X |
|
MR-015RM |
O |
O |
O |
X |
X |
X |
O |
O |
X |
X |
O Match, X Doesn’t Match
Technical Data
Length 124.5, 128.5, 132.5mm
Width 65 ~ 74mm
Total Weight approx. 130g
Wheelbase 86, 90, 94mm
Tread (F) 56.5 ~ 64mm
Tread (R) 56.5 ~ 62.5mm
Ground Clearance 4mm
Tire (F) φ25 x 8.5mm
Tire (R) φ25 x 8.5 ~ 11mm
Gear Ratio 7.3, 6.3, 5.5, 4.9 : 1
Motor 130-Class
|
