Tamiya 43530 RC GP RTR TNX 5.2 - 4x4 Racing Truck
To order Tamiya
TA43530
|
|
|
|
Since its introduction in June 2004, the TNX has
dominated the U.S. R/C racing truck scene with a
series of impressive wins, including Monster
Madness and the Pro-Line Nitro Maxx Challenge.
We now proudly announce our next generation
Ready-to-Run nitro monster truck: the TNX 5.2R
which is designed to continue this victorious
trend with even greater top speeds and
performance. |
|
|
|
|
The new TNX engine features a rear exhaust pipe
for bursts of power, pushing this R/C Monster
truck to the front of the pack with explosive
acceleration and extreme top speeds. The high
performance 5.2cc .32 (cubic inch) engine
features a slide valve carburetor for optimum
response. The New TGM-04 chassis features a
2-speed transmission for reliable shifting and
ball pivot suspension equipped with 4 large
capacity oil dampers for excellent handling and
stability. The Ultra tough chassis frame
features reinforced and heavy-duty parts built
to take on all kinds of terrain. Steel drive
shafts provide improved durability and excellent
performance, without adding unnecessary weight.
Fully-equipped weight of the new TNX is
drastically reduced, weighing in at 4,300g. This
is a full 100g lighter than the original TNX,
and compares favorably with most 1/10 scale
monster trucks. |









To order Tamiya
TA43530

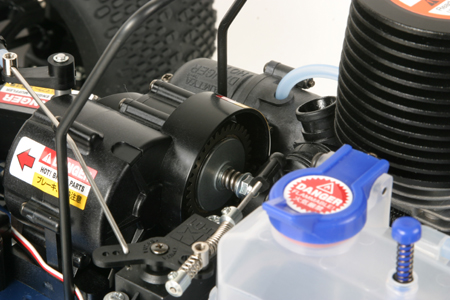

2-Speed
 |
|
Compact 2-speed transmission
fitted with a hook style clutch guarantees
secure and stable gear changing. Features metal
spur gear for heightened durability. Slipper
clutch protects gears from shocks and can be
adjusted by tightening nut. |
4WD
 |
|

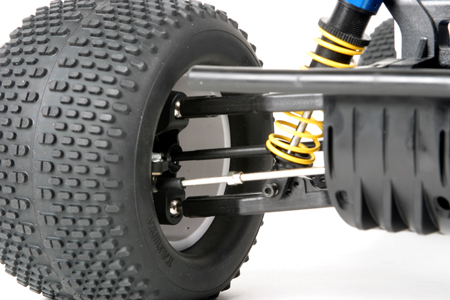

Shaft driven 4WD chassis
transmits engine power from transmission located
in the middle of chassis to front and rear

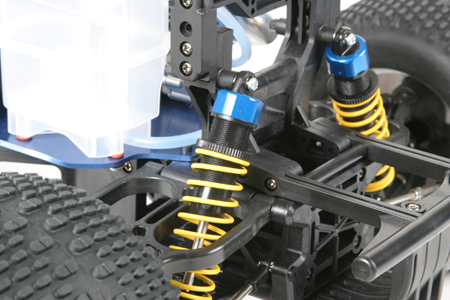

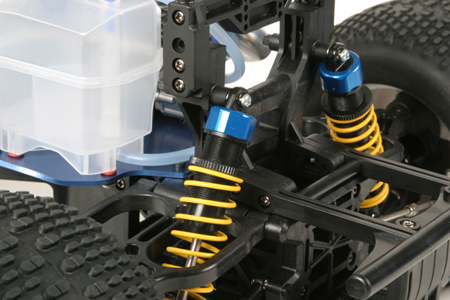

wheels via metal drive shafts. Ball pivot type
four wheel double wishbone suspension and large
capacity oil dampers ensure unbeatable off-road
performance. |

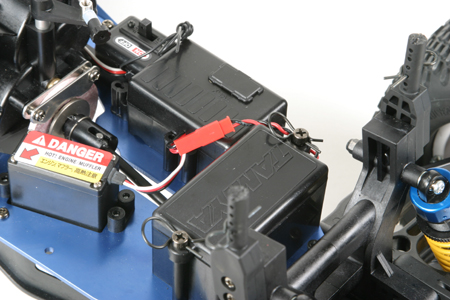

Fail-Safe
 |
|
Lightweight and compact
receiver equipped with fail safe device. The
device prevents out of control driving caused by
radio interference or low battery power by
returning throttle servo to neutral or Brakes |
High Torque Servo
 |
|
The compact yet high-torque
steering servo accurately guides the 148mm large
diameter wheels. It provides sharp steering
response. |
Full Ball Bearings
 |
|
A total 26 pcs. of ball
bearings are employed from wheel axles to
propeller shafts in gearboxes. Bearings minimize
friction loss, ensure smooth movement and extend
life of rotating parts. |

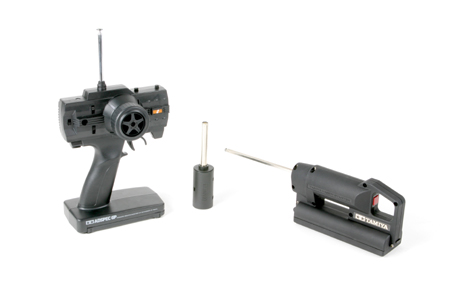

Adspec GP 2-channel transmitter
 |
|
Wheel/trigger type
transmitter included. Simply turn the wheel for
steering, pull/push the trigger for acceleration
and braking. |
Electric Handy Starter Included
 |
|
Engine can be started without
removing body Set plug heater into the engine
and insert starter into gear unit. Engine can be
easily started by pushing button.
*7.2V and C alkaline batteries are sold
separately.. |

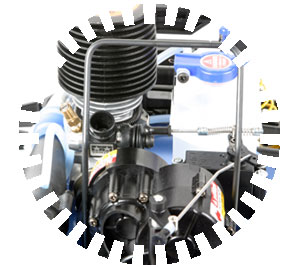

High Powered 5.2cc FR-32FX Engine
 |
|
The rugged and road-eating
TNX 5.2R comes with a Tamiya FR-32FX engine
featuring large diameter slide carburetor, 14mm
crank shaft, lightweight piston and large heat
sink head. The monster size engine features
5.2cc displacement and provides enormous power
and blistering fast top speeds that are certain
to demolish the competition! |
PDF's
 |
|
Standard Manual (Link on top
of page)
Maintenance Manual
PDF (2.8M) |
Movies
|
Download
Video (High Speed Connection)
WMV 640x480 pixel 1min 13sec.
(16.12MB)
*After saving the video to disk, you can play it
using either Windows Media Player or Quick Time
Player |
|
Download
Video (High Speed Connection)
WMV 640x480 pixel 18sec.
(13.04MB)
*After saving the video to disk, you can play it
using either Windows Media Player or Quick Time
Player |
|
Download
Video (High Speed Connection)
WMV 640x480 pixel 18sec.
(20.13MB)
*After saving the video to disk, you can play it
using either Windows Media Player or Quick Time
Player |
|
Download
Video (High Speed Connection)
WMV 640x480 pixel 18sec. (2MB)
*After saving the video to disk, you can play it
using either Windows Media Player or Quick Time
Player |
|
Download
Video (High Speed Connection)
WMV 640x480 pixel 18sec.
(20.63MB)
*After saving the video to disk, you can play it
using either Windows Media Player or Quick Time
Player |
|
Download
Video (High Speed Connection)
WMV 640x480 pixel 18sec.
(32.25MB)
*After saving the video to disk, you can play it
using either Windows Media Player or Quick Time
Player |
To order Tamiya
TA43530
About the model
- 1/8 Ready-To-Run R/C Glow Engine Monster Truck
on a shaft driven 4WD TGM-04 Chassis.
- Lightweight and compact TRU-03 Receiver features
failsafe function to prevent runaway driving caused
by radio interference or low battery power.
- Comes with external electric Tamiya Handy
Starter with drive gear unit and plug heater.
- Wheel/trigger type transmitter included.

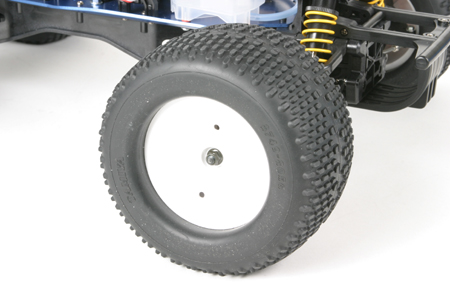

- Features newly developed high-density, oval
spike tires and dish wheels.
- Ball pivot type 4 wheel double wishbone
suspension features 4 large capacity oil dampers.
- Features 2-speed transmission with metal spur
gear and slipper clutch for heightened durability.
- Powerful 5.2cc (.32 cubic inch) FR-32FX engine
with slide valve carburetor.
- A total of 26 ball bearings used to ensure
smooth and efficient movement.
- Reinforced steel drive shafts.
- AA & C Batteries, engine fuel are separately
required to operate truck.
- Tune-up truck with Tamiya Option Parts. Add
separately available oil dampers and springs to
attach a total of 8 dampers. Other option parts such
as brake arm & disc, suspension mount & hex wheel
hub will further upgrade and improve performance.
RTR NITRO XB KITS REQUIRE:
(unless stated differently above)
- Battery: 4AA for Receiver 8AA for Transmitter
- Fuel: Nitro Glow Fuel
- Starting Equipment: Glow igniter
- Misc. Items: Building and track equipment
