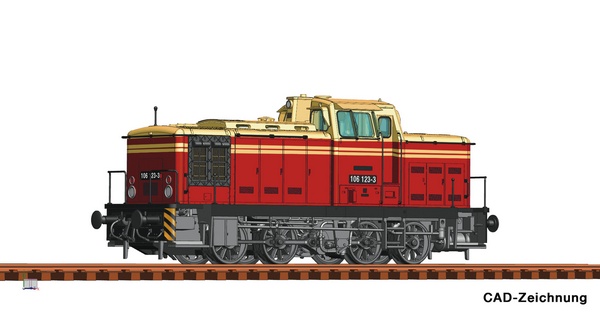

Roco 70259 Diesel locomotive class 106 DR
Diesel locomotive class 106 of the Deutsche Reichsbahn.
■ Locomotive of the 2nd design
■ With rain protection roof of the side windows
■ In dark red paint livery with cream-coloured decorative stripes
■ Frost protection covers of the ventilation grilles - can be mounted open and closed
■ Motor stems made of die-cast metal, therefore more dead weight and high tractive power
■ Delicately designed model with many extra applied plug-in parts
■ With switchable headlight or tail light, shunting light and driver’s cab lighting in digital mode
■ With set of etched signs included
The colour scheme of the class V 60.10 changed over the years. The locomotives put into service from class V 60 1097 onwards were painted Bordeaux red and had two cream-coloured decorative stripes. Additionally to the locomotive's roofs and front structures, the upper part of the driver's cab was also painted cream. In the 1970s, the rod-driven diesel locomotives of the class V 60.10 were painted orange like all DR shunting locomotives.
Operating number 106 123-3 Epoch: IV Gauge: H0 Elect. system: 2L - Digital
|
General Data |
|
|
Coupling |
NEM shaft 362 with close coupling mechanism |
|
Minimum radius |
358 mm |
|
Flywheel |
yes
|
|
Scale |
294 |
|
Number of driven axles |
4 |
|
Number of axles with traction tyres
|
1 |
|
Electrical |
|
|
Head light |
3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
|
LED head light |
yes |
|
Control |
2L - Digital |
|
Interface |
Electrical interface for traction units PluX22 |
|
Digital decoder
|
PluX22 |
|
Decoder-Type |
MX645P22 |
|
Additional light function
Sound
Buffer capacitor
|
yes |
|
Interior lighting |
Yes, LED, Digital switchable, Driver's cab lighting |
|
Measurements: |
|
|
Length over buffer:
|
125 mm |
