Model Trains
|
Twin Force Electric RTR
And Spirit version
35 MPH
Order 30521
HERE
Order
30522 Spirit HERE
See
movie HERE

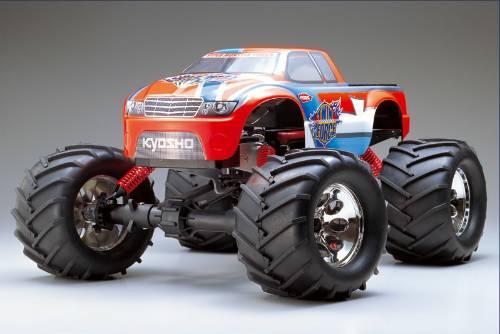

14.4V of high-voltage torque from the two Ex-Speed Monster 550 motors makes
this truck run with the best of them! The power is transferred to all 4 wheels
through a gear & chain two- stage center shaft driven 4WD resulting in
incredible performance.
The semi-monocoque sub-frame chassis and re-enforced casing on rigid front &
rear axles combine to produce the foundation for the Twin Force's awesome speed
and durability. The solid front and rear axle give the Twin Force the a true
Monster Truck look.
The Twin Force is ready and waiting for you to turn up the heat in your backyard
or on the track!
14.4V
of power produces incredible speeds.
Two 7.2V Ni-Cd or Ni-MH batteries lay side by side down the length of the
chassis for superio balance. (not included)

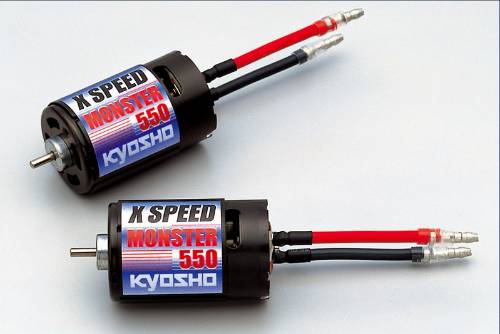

Equipped with two Ex-Speed Monster 550 motors with internal cooling fans +
silicon steel can sleeves for oustanding performance.

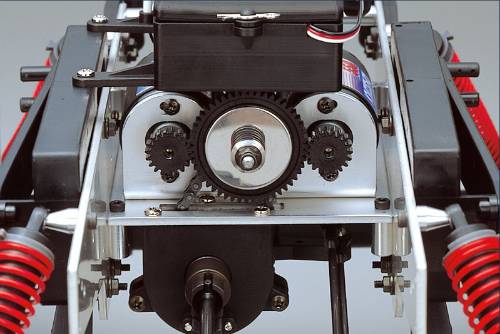

Proprietary design layout transfers power from the spur gear through the ladder
chain and shaft driven 4WD.
Bevel-geared diff. gears on front and rear combine with center one-way unit to
produce a powerful and easy to operate fulltime 4WD system.
The slipper clutch harnesses the awesome power and delivers the optimum level of
traction while preventing the drive train from overloading.
High-performance combination of differential gears, suspension arms, and rigid
front and rear axles with strong casings.
Full ball bearing specifications with 20 bearings used throughout the drive
system. For high efficiency and low friction.
Wheelie bar and rollbar are standard equipment and come in handy with all this
power!

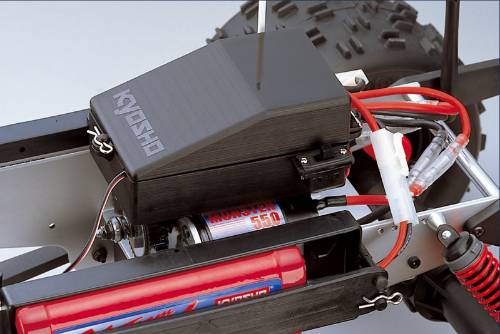

Equipped with radio box to protect receiver and batteries etc. from dirt and
minor water splashes.

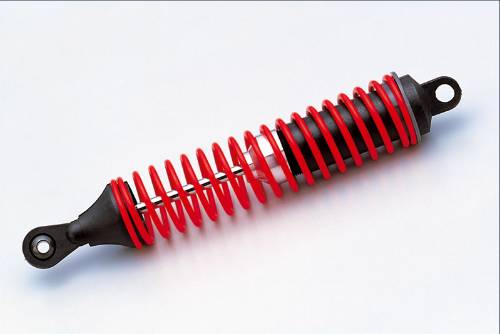

Large capacity oil shocks are standard equipment.
Directional-patterned pneumatic tires with inner-foam produce the outstanding
grip needed for such a high-power and high-performance truck.
Specifications
|
Length: |
540mm |
Width: |
415mm |
Height |
260mm |
Ground Clearance |
50mm |
Wheelbase |
315mm- 326mm |
Track Width F/R |
310mm |
Gear ratio: |
21.71:1 |
Tire size: |
160mm x 100mm |
Total Weight |
4,500g approx |
Motor |
X-Speed 550 with internal cooling fan (2) |
To order 30521B
Twin Force 1/8
Spirit version:
Two 7.2 volt batteries produce
14.4V of high voltage power that runs through the special high
power speedcontrol to the motors. The already menacing power of
the Twin Force has been enhanced even further with the "Spirit"
. Lighter weight from the carbon side plates combine with the
extra strength and performance of the center universal shafts to
get the most from the two X-SPEED 550 Evo motors included.
Discover the new Spirit now!
Features
- Equipped with 3mm thick carbon side plates. Increases
front to rear rigidity and results is about 100g of weight
reduction and lower C of G.
- Features Kyosho’s original high frequency speed control
to handle the extra power from the twin batteries and twin
motors.
- Loaded with twin high-speed “X-SPEED 550 Evo” motors.
Produces amazing acceleration and heart thumping top speeds.
- Center universal shafts increase efficiency and strength
in the drivetrain.
Shared Specs. with Twin Force
- Powered by two 7.2 volt battery packs (Not Included).
- Equipped with two 550-class motors with built-in cooling
fans and silicon steel can rings that increases the magnetic
force.
- Kyosho designed power train transfers power from the
spur gear through the ladder chain to the 4WD system.
- Includes special electronic speed control with reverse
that can handle the 14.4V of power.
- Fulltime 4WD system features bevel-geared diffs on front
and rear plus a center one-way unit.
- Slipper clutch included as standard feature.
- Front and rear rigid axles with strong casings,
suspension arms and differential gears are all
pre-installed.
- Full ball bearing specifications used throughout the
drive train (total of 20 ball bearings).
- Comes ready to rumble with wheelie bar and rollbar as
standard. Equipped with radio box that protects receiver
etc. from dirt and small splashes of water.
- Large capacity emulsion oil shocks at all four wheels.
- Directional pattern pneumatic tires with inner sponge.
Additional Items Required: Two 7.2 volt
battery packs, 2 channel radio with one servo, battery charger.
Specifications |
Length: |
540mm |
Width: |
415mm |
Height |
260mm |
Ground Clearance |
50mm |
Wheelbase |
315 - 326mm |
Track Width F/R |
310mm |
Gear ratio: |
22.98:1 |
Tire size: |
160 x 100mm |
Total Weight |
approx. 4,400g |
Motor |
Two X-SPEED 550 Evo motors with built-in cooling
fans |
To order
30522B Spirit HERE
|
|
|
