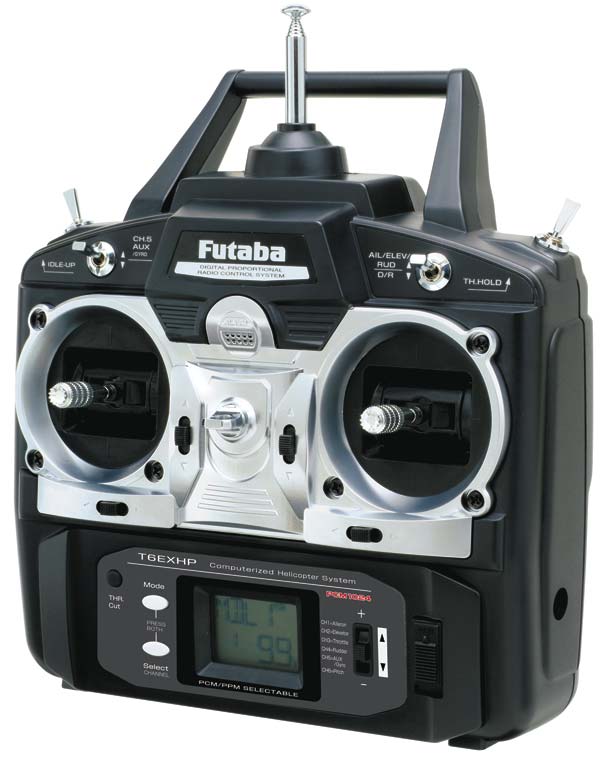

FUTABA 6EXH
|
 |
A computer heli system with more for less!
- Programming ease is just one of the outstanding
features that make the 6EXH the perfect system for
beginning heli pilots!
- Modelers can choose FM or PCM; both come
complete with transmitter and receiver NiCds,
charger and switch harness.
- A long list of features and an affordable price
make this a computer radio that heli enthusiasts of
all skill levels can enjoy!
You get all this and more with the 6EXH:
- Fail Safe that's pre-programmed on the throttle
(PCM mode)
- Rate selection on both gyro mixing and revo
mixing
- Mixing warning safety feature
- 6-model memory
- 4-character model naming
- 5-point adjustment with 2 curves on both
Throttle Curve and Pitch Curve, Normal and Idle Up
- Multiple swash plate styles, data reset, trainer
capability, EPA, exponential, digital trims, LCD
screen and much more!
|
Normal Throttle Curve |
Adjustable from 0-100% for each point (5 points) |
|
Normal Pitch Curve |
Adjustable from 0-100% for each point (5 points) |
|
Idle Up Throttle Curve |
Adjustable from 0-100% for each point (5 points) |
|
Idle Up Pitch Curve |
Adjustable from 0-100% for each point (5 points) |
|
Throttle Hold |
Adjustable +/- 50% |
|
Revo Mixing |
Adjustable +/- 100% |
|
Gyro Mixing |
Adjustable +/- 100% |
|
Swash |
2-Swash modes ARF with 3-S Type and Independent
Aileron/Elevator/Pitch with 1-S Adjustable +/-
100% |
|
|
|
|
|
|
|
The 6EXH replaces the 6EXA Super's flap rotary
dial with a Throttle Hold switch that's great
for performing autorotation maneuvers. |
|
After accessing the channel menu with the Select
button, modelers simply use the Mode button to
scroll through. The Throttle Cut button safely
kills the engine after landing. |
|
The Data Input Lever makes it easy to set end
points and rates for all six channels. |
|
Stock # |
Tx |
(Qty.)Sx |
Rx |
Tx NiCd |
Rx NiCd |
Band(MHx) |
Modulation |
|
FUTK59 |
6EXH |
(4)S3151 |
R138DP |
600mAh |
1,000mAh |
72 |
PCM |
|
FUTK61 |
6EXH |
(4)S3103 |
R146iP |
600mAh |
1,000mAh |
72 |
PCM |
|
|
Order
FU6EXH with 4X3103 PCM
Order
FU6EXH with 4X3151 PCM
Order
FU6EXH with 4X3151 FM
Order
FU6EXH with 4X3107 FM
